30mm Special Operators

Engineered for Superior Performance in all Applications


[PRODUCT RESOURCES COMING SOON!]

Product Features

  • Snap-on alternate action block with early make contact for use with momentary devices. Units available with or without contact blocks.
  • Cable pull operators available in four styles and are UL Listed for Type 1, 2, 3, 3R, 4/4X, 12 and 13. Note: Contact operation is opposite of normal (i.e., CBNO is held closed and opens only when the eyebolt is pulled.)
  • Reset push buttons mount in a 1-13/64" (30.5mm) hole and accepts either 20 hex head bolts or 20 thread rod. Note: Special bolt lenghts are available but are not guaranteed for same day shipping - consult factory.
  • Our linear wobble stick has spring return action to center and is rated for Type 4/4X.

Configure Your Item Here

Your configured product catalog number and product description:

Catalog Part Number:

For application support or offline purchase call 724.775.7926

List Price:

Your c3 Web Price

Range of Special Operators

Note: The c3controls cable pull switch is a "pull operated" switch designed to be operated by pulling on a rope or cable. It is not designed to the Machine Directives for Emergency Devices for Safeguarding Machinery. It does not offer direct drive, positive break/positive transfer contacts. It is a spring operated momentary device that operates "slow make/slow break" normally open and normally closed contact blocks. Pulling the eyebolt collapses an internal spring, which allows contact blocks mounted on the rear of the operator to open or close and actuate the intended circuit. Releasing the eyebolt allows the internal spring to return and depress the contact blocks to their original state. The device is designed to provide in excess of 1 million mechanical operations and is frequently applied in overhead door applications.

Alternate Action Block

Our snap-on alternate action block mounts in position of a standard contact block to provide alternate "push-on/push-off" contact action. It may be used with any momentary push button or momentary illuminated push button operator. Note: Action block comes standard using an Early Make contact block.

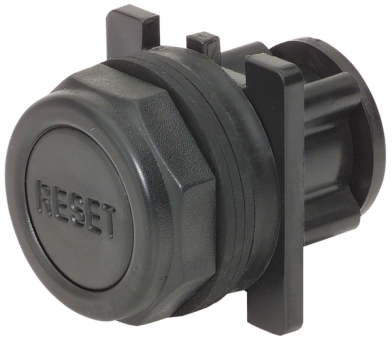

Reset Push Button

Our unique reset push button mounts in a standard 1-13/64" (30.5mm) hole and accepts either 20 hex head bolts or 20 thread rod to provide adjustable extension and save on all rod cutting and fitting labor. Universal styles include two bolts to cover 1" to 3" (25.4mm to 76.2mm) space from cover to overload reset rod. It is rated Type 4/4X as standard.

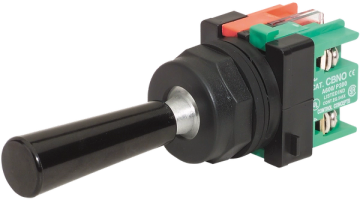

Wobble Stick

Designed primarily for use with pendant stations, the wobble stick may be mounted in oil tight or watertight stations. The unit has spring return action to center and may be operated from any angle. It is rated Type 4/4X as standard. Note: Our wobble stick is a linear device similar to a push button. It is not a joystick or directional.

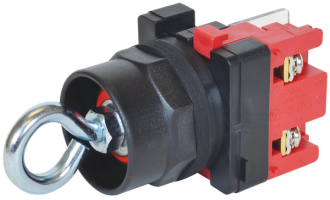

Momentary Cable Pull Operator

Constructed to withstand corrosive environments. It holds contact blocks in the operated position until a 4-6 pound force is applied to the included eyebolt.

Booted Momentary Cable Pull Operator

Provides protection in the most severe environments, such as when sleet, freeze and thaw conditions are prevalent. It holds contact blocks in the operated position until a 4 - 6 pound force is applied to the included eyebolt.

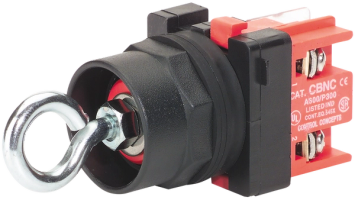

Heavy-Duty Momentary Cable Pull Operator

Constructed of solid brass to provide the most reliable operation. It holds contact blocks in the operated position until a 13 pound force is applied to the included eyebolt.

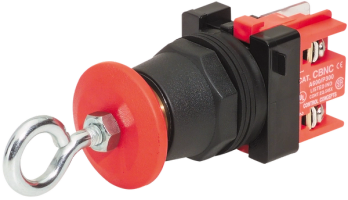

Push-Pull Maintained Cable Pull Operator

Operating head is provided with a latch detent mechanism to hold the operator in the pulled or "out" position when operated. It holds contact blocks in the operated position until a 4 - 6 pound force is applied to the included eyebolt. Requires a manual reset after actuation. Also available in solid stainless steel as a custom order (not available for guaranteed same day shipping) - consult the factory.
