Key Specifications and Ratings of Disconnect Switches

Voltage Ratings (Low Voltage vs High Voltage)

The voltage rating of a disconnect switch specifies the highest system voltage it can safely interrupt and isolate.

• Low-voltage switches are typically rated up to 600V AC, covering most industrial and commercial systems.
• High-voltage switches are used in utility and specialized industrial applications, rated for systems above 1000V.

When selecting a switch, the voltage rating must meet or exceed the system’s maximum voltage, including normal variations, transients, and potential changes in system configuration. This ensures safe operation, compliance with standards, and long service life.

Standard Voltage Classes:

• Low Voltage: Up to 600V AC (industrial & commercial applications)
• Medium Voltage: 601V – 35kV (utility distribution systems)
• High Voltage: Above 35kV (transmission networks)

Current Ratings and Load Capacity

Current rating defines the maximum continuous current a switch can carry without overheating.

• Ratings for most industrial disconnect switches range from 16A to 125A, with higher ratings available for heavy-duty applications.
• Factors like ambient temperature, enclosure type, and ventilation must be considered to avoid excessive heat buildup.

High current generates more heat, so good contact design and proper enclosure selection are critical for reliable long-term performance.

Short Circuit Interrupt Capacity

This rating indicates the maximum fault current the switch can safely interrupt without damage.

• Quality disconnect switches often have ratings of 10kA or more when paired with proper overcurrent protection.
• The interrupting capacity depends on contact design, arc quenching mechanisms, and materials used.
• For switches not designed to break high fault currents, proper coordination with upstream fuses or breakers is essential.
• Class J fuses are commonly used to boost interrupt capacity and improve protection coordination.

Number of Poles (1, 2, 3, 4, 5-Pole Options)

The number of poles must match the electrical system being isolated.

• 3-Pole: Standard three-phase systems
• 4-Pole: Three-phase with switched neutral for added safety
• 5-Pole: Special applications requiring extra circuits

Many modern switches use a modular design, allowing upgrades from 3-pole to 5-pole configurations without replacing the entire switch, saving inventory costs and simplifying future system modifications.

Horsepower Ratings for Motor Applications

For motor circuits, switches carry horsepower (HP) ratings indicating the largest motor they can safely control.

• UL 508 manual motor controllers are typically rated up to 40 HP at 480V.
• Motor starting current can be 6–8 times the full-load current, so the switch must handle these surges reliably.

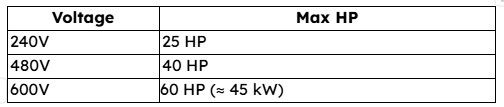

Typical Motor HP Ratings by Voltage (3-Phase):

Proper horsepower selection ensures smooth operation, reduced wear, and long switch life even with frequent motor starts.

Environmental Ratings (NEMA & IP Protection)

Environmental ratings indicate how well a disconnect switch performs under various conditions such as temperature, moisture, and dust exposure.

• NEMA ratings are commonly used in North America, while IP ratings are used internationally.

Common Rating:

• NEMA 4X: Weatherproof and corrosion-resistant (ideal for outdoor/washdown use)
• IP55: Dust-protected and water-jet resistant
• IP65: Fully dust-tight and resistant to low-pressure water jets

Choosing the correct rating ensures long-term reliability and protection against environmental hazards, which is especially important in washdown, outdoor, or corrosive environments.

What are the Safety Standards and Compliance followed for the Disconnect Switch?

National Electrical Code (NEC) Requirements

The NEC sets essential rules for installing disconnect switches. Article 430.109 requires a disconnect for motors and motor controllers, while other sections cover various equipment types. A key rule is that switches must be “within sight” of the equipment, allowing visual confirmation that circuits are safely isolated.

NEC guidelines also emphasize accessibility, clear labeling, and safe operation. Switches should be easy for qualified personnel to reach, secure from unauthorized use, and clearly indicate the circuits they control, ensuring safe maintenance.

NEC Compliance Best Practices:

• Install within sight of the equipment (≤50 feet)
• Clearly label circuits and equipment served
• Ensure easy access for qualified personnel
• Verify interrupting capacity meets system requirements
• Confirm proper grounding and bonding

UL Standards UL 98, UL 508

UL standards define safety requirements for disconnect switch construction, testing, and performance.

• UL 98 covers general-purpose enclosed switches, suitable for a wide range of electrical applications.
• UL 508 applies to industrial control equipment, including manual motor controllers, and is limited to motor circuits.

Understanding the difference between these standards is critical: UL 98 switches offer broader flexibility, while UL 508 switches are restricted to motor control applications. Proper selection ensures code compliance and safe operation.

Key UL Requirements:

• Construction materials and methods
• Electrical performance and safety
• Environmental testing and durability
• Marking and identification
• Installation and application guidelines

IEC International Standards (IEC 60947-1, 60947-3)

IEC standards set global requirements for electrical equipment, including disconnect switches. They often guide the design of products for international markets and can provide alternative compliance paths in specific applications. Many manufacturers now design switches to meet both IEC and regional standards, offering flexibility for worldwide use while ensuring local compliance.

CSA (Canadian Standards Association) Standards (CSA C22.2 No. 14)

CSA standards align closely with UL requirements but also account for Canadian installation practices and environmental conditions. CSA certification is often mandatory for Canadian projects and may be required alongside UL certification for dual-compliance installations.

What are the Installation Requirements for Disconnect Switches?

“In Sight” Requirement – Visible and Within 50 Feet

Disconnect switches must be within sight of the equipment they serve, allowing personnel to visually confirm the switch’s position before starting work. This prevents accidents caused by assumptions about circuit status. The 50-foot maximum distance ensures switches remain reasonably close, avoiding situations where communication or location issues could compromise safety.

The NEC's 'in sight' requirements represent more than 60 separate safety mandates designed to protect electrical workers. These requirements have evolved from hard-learned lessons about electrical accidents.” – Electrical Safety Foundation International

Lockout/Tagout (LOTO) Compliance

Disconnect switches must support lockout/tagout procedures, allowing multiple padlocks and ensuring the switch cannot be operated while locked. Clear indication of lock status is essential.

LOTO Compliance Checklist

• Multiple padlock capability (minimum 3 locks)
• Positive locking mechanism preventing operation
• Clear indication of locked status
• Tamper-resistant construction
• Durable padlocking hardware

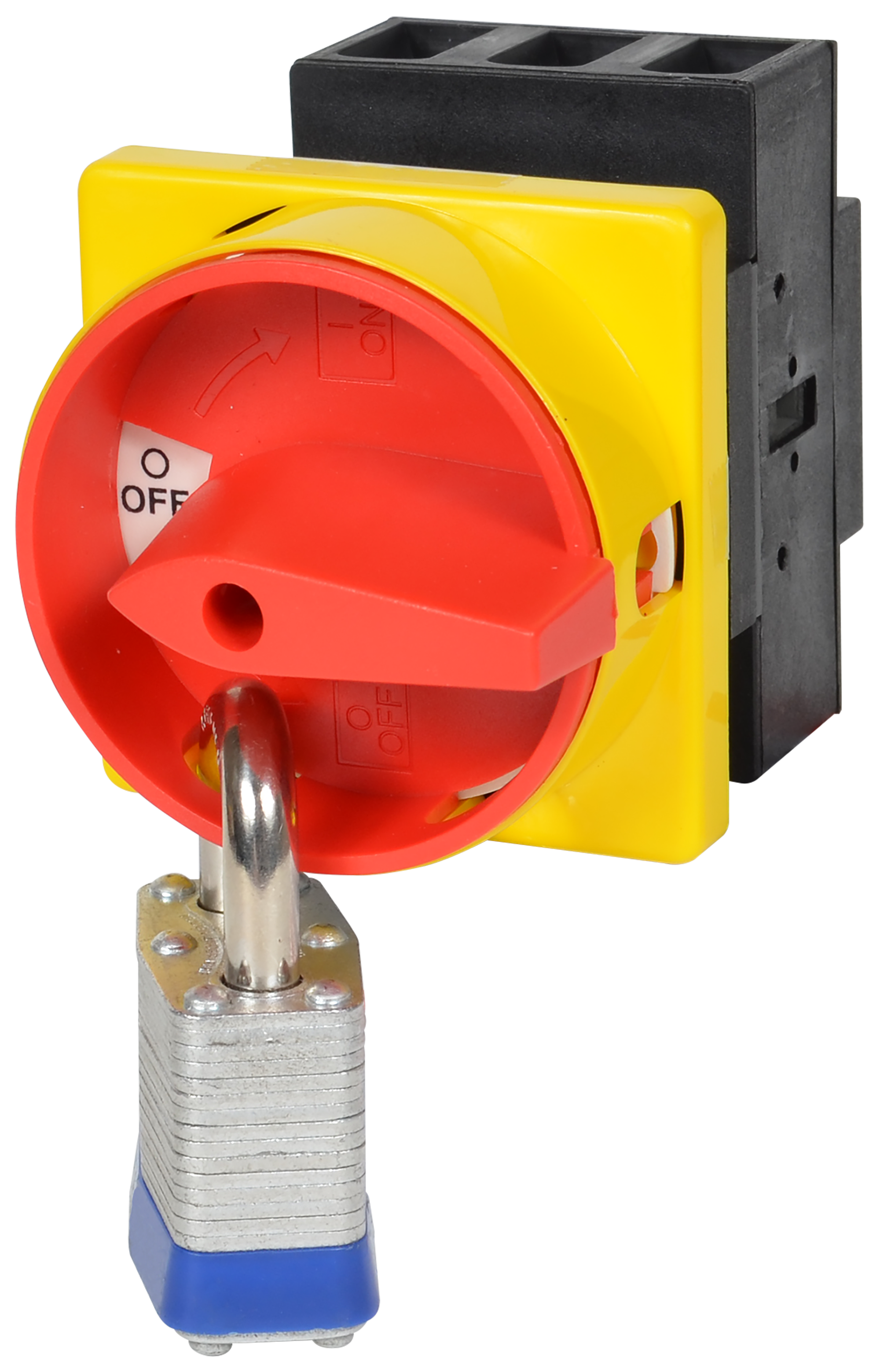

Padlocking Capabilities

High-quality switches feature robust padlocking systems that resist environmental damage and tampering. Multiple padlock capability allows several workers to lock the switch individually, ensuring the equipment cannot be re-energized until all personnel have removed their locks.

Door Interlock Systems

Door interlocks mechanically link enclosure doors to the disconnect switch, preventing access to energized equipment unless the switch is in the OFF position. Advanced systems may include special defeater mechanisms for authorized access during testing, maintaining security while allowing safe troubleshooting.

Applications Across Industries

Industrial Applications – Motor Control & Protection

Disconnect switches are essential for motor control, handling everything from small fractional HP motors to large industrial drives. They must withstand starting currents, provide reliable isolation for maintenance, and meet NEC motor disconnect requirements.

Modern applications often include VFDs (Variable Frequency Drives), which require switches rated for harmonic content and switching characteristics to ensure smooth operation and long service life.

Common Industrial Applications:

• Pump stations & water treatment plants
• Manufacturing equipment & conveyors
• HVAC and building automation
• Process control & automation systems

Manufacturing Equipment Isolation

Factories need multiple isolation points for maintenance and safety. Disconnect switches allow quick lockout/tagout and help minimize costly downtime, which can reach thousands per minute. Reliable switches reduce maintenance and support 24/7 operations.

Process Control & Emergency Shutdown Systems

Process industries use disconnect switches for isolating control systems, instruments, and hazardous-area equipment. They are integrated with Safety Instrumented Systems (SIS) to enable controlled shutdowns during emergencies.

Critical emergency shutdown systems often use redundant switches and remote operation to guarantee immediate response and reliability.

Commercial Applications

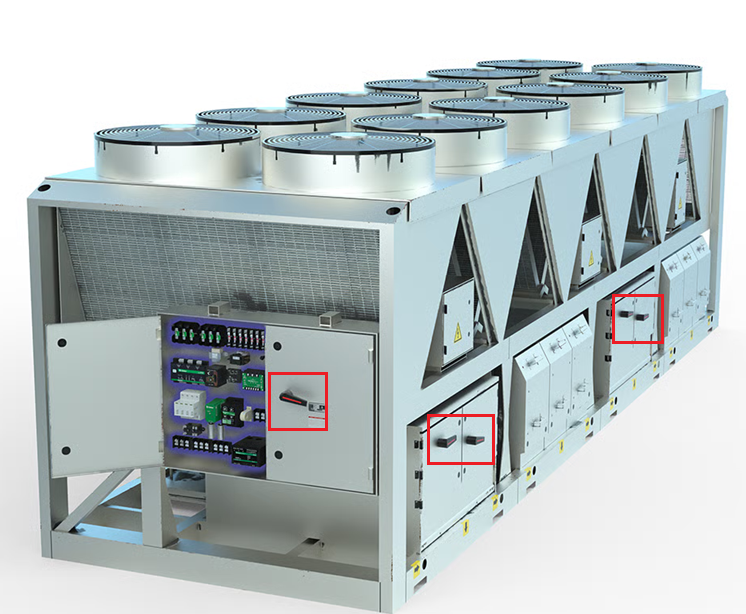

1. HVAC Systems

Local disconnect switches are required for rooftop units, chillers, and air handlers, enabling safe and quick isolation during seasonal maintenance. Weather-resistant enclosures are crucial for outdoor units.

2. Building Electrical Distribution

Commercial buildings use service entrance disconnects, feeder isolation switches, and equipment-level disconnects to support safe maintenance and emergency response. Coordination with electrical and life safety systems is essential.

3. Data Centers & Critical Facilities

Data centers demand 99.999% uptime, requiring highly reliable disconnect switches that allow maintenance without service disruption. Redundant configurations and hot-swappable components minimize MTTR (mean time to repair).

4. Service Entrance Applications

Service entrance disconnect switches act as the main isolation point for buildings. They must handle the full building load, comply with utility codes, and integrate with metering and grounding systems.

Utility & Power Distribution

Grid Isolation & Maintenance

Utilities rely on disconnect switches for isolating transformers, lines, and switchgear during maintenance while keeping power flowing to other areas. Outdoor switches must be weatherproof, durable, and mechanically reliable.

Renewable Energy Systems

Solar and wind installations require DC and AC disconnects for safe installation, maintenance, and emergency isolation. DC switching is particularly challenging due to arc extinction requirements, influencing switch design.

Market Insight: The global disconnect switch market is projected to grow from $15.7B in 2025 to $25.1B by 2035, driven by renewable energy integration and smart grid development.

Substation & Load Shedding Applications

Substations use disconnect switches within switchgear systems for isolation and maintenance, often with remote and supervisory control.

Load shedding systems rely on disconnect switches to quickly reduce demand during peak periods or emergencies, increasingly using smart switches with communication capabilities for precise control.

----------------------------------------
