Introduction

Electrical safety and reliability hinge on the ability to completely and visibly isolate power when servicing equipment or responding to an emergency. This is where disconnect switches—also known as isolators or safety switches—play a critical role. Far more than simple on/off devices, disconnect switches provide a physical break in the circuit, ensuring that no current can reach downstream components.

By creating this visible and verifiable separation, they safeguard personnel from electrical hazards, support compliance with stringent codes such as the NEC, and protect sensitive equipment from damage. In industrial facilities, commercial buildings, and utility systems alike, disconnect switches remain one of the most essential yet often overlooked components of modern electrical infrastructure.

Historical Development and Evolution

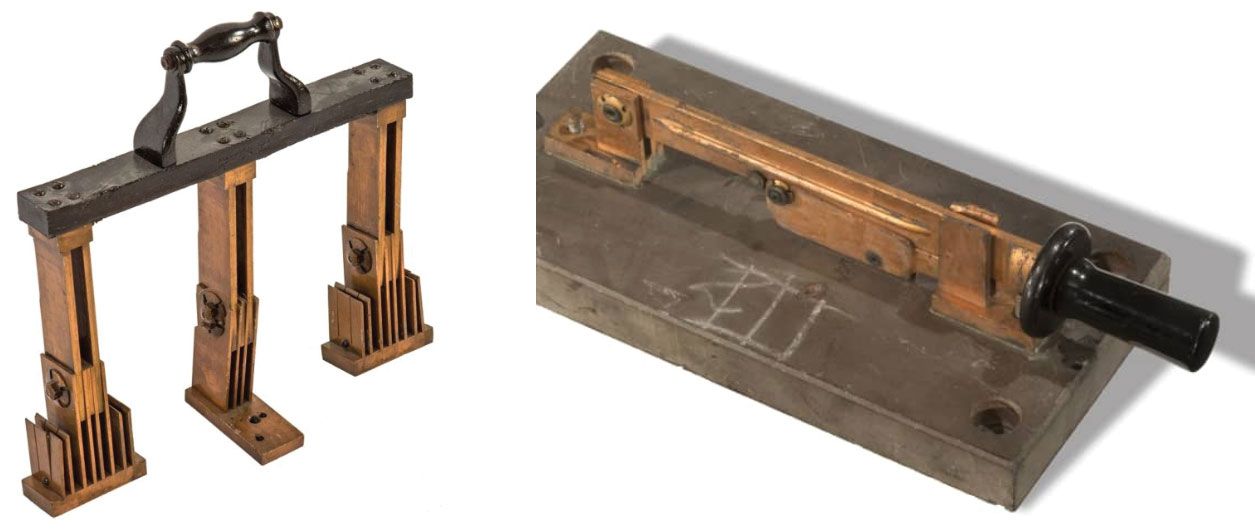

The evolution of disconnect switches closely mirrors the growth of electrical power distribution systems. The earliest versions, known as knife switches and developed in the late 19th century, provided the fundamental ability to manually open and close electrical circuits. These early devices were simple yet effective, featuring exposed copper blades that created a clearly visible air gap when opened, ensuring complete circuit isolation.

Over time, as electrical systems grew more complex and safety standards became stricter, disconnect switch designs advanced significantly. Innovations such as enclosed construction, superior contact materials, and added safety mechanisms improved their reliability. The adoption of rotary operating mechanisms, protective housings, and standardized mounting configurations transformed disconnect switches from basic manual blades into robust, sophisticated safety devices designed to meet the demands of modern electrical systems.

What Is a Disconnect Switch?

A disconnect switch, often referred to as an isolator or safety switch, is a fundamental yet essential device designed to completely cut off electrical power to equipment or circuits. Its primary function is to ensure total isolation before performing maintenance or during emergency shutdowns.

In modern industrial environments, disconnect switches are widely used – from control panels to utility substations – acting as a critical safeguard that breaks the electrical connection both literally and figuratively. By physically disconnecting the circuit from its power source, these switches ensure that no current flows, thereby protecting both personnel and equipment.

Why are Disconnect Switches Essential for Safety?

The National Electrical Code (NEC) includes more than 60 rules for installing disconnect switches. These switches must be placed “within sight” of the equipment, which means they should be visible and located no more than 50 feet away. This requirement is meant to ensure safe power isolation while maintenance work is being carried out.

Disconnect switches also support lockout/tagout (LOTO) compliance by offering padlocking points and clear ON/OFF indication, preventing accidental energization. Proper application helps protect workers from electric shock, arc flash hazards, and equipment damage.

Quick Safety Checklist:

• The switch must be visible from the equipment.
• Provide padlocking for LOTO.
• Match voltage/current ratings.
• Ensure suitable environmental protection.
• Display clear ON/OFF positions.

How Disconnect Switches Work: 5-Step Safety Isolation

1. Basic Operating Principles

Disconnect switches work on a simple but vital principle: physically separating electrical contacts to create an air gap that stops current flow. Unlike electronic switching, this mechanical action provides a visible break, guaranteeing true circuit isolation. A well-designed switch uses a positive drive mechanism to open all poles simultaneously, preventing partial disconnection and ensuring safe, reliable operation even under load.

2. Mechanical Design and Components

Modern disconnect switches incorporate several critical mechanical components that work together to provide reliable isolation. The contact system typically features stationary and movable contacts made from silver-plated copper or other conductive materials designed to minimize resistance and prevent arcing.

Contact springs maintain proper pressure when closed, ensuring low-resistance connections that minimize heat generation.

The operating mechanism includes the actuator handle, linkage system, and internal contacts. High-quality switches feature double-break contacts that provide two points of isolation per pole, enhancing safety and reliability. The positive drive mechanism ensures that contact operation occurs rapidly, minimizing arcing during switching operations.

Key Mechanical Components:

• Double-break contacts: Enhanced isolation with two break points per pole
• Positive drive mechanism: Simultaneous operation of all poles
• Contact springs: Maintain proper pressure and low resistance
• Operating linkage: Translates handle motion to contact movement
• Position indicators: Provide visual confirmation of switch state

3. Electrical Isolation Mechanisms

Effective isolation requires a sufficient air gap to withstand system voltage without flashover. Quality switches exceed minimum clearance requirements, use tracking-resistant insulation materials, and feature arc-resistant enclosures, ensuring reliable operation in harsh environments over many years.

4. Contact Configurations & Switching Action

Disconnect switches are available in multiple configurations:

• Three-pole for standard three-phase systems
• Four-pole with switched neutral for added safety
• Five-pole for complex or specialized applications

Most use snap-action mechanisms for quick make-and-break operation, reducing arcing and ensuring consistent performance regardless of handle speed.

5. Visual Indication Features

Clear visual confirmation is one of the most important safety aspects. Handles are color-coded or marked with I/O symbols for intuitive ON/OFF identification, red often indicating OFF. Many designs also include viewing windows to let personnel visually confirm contact separation before beginning work.

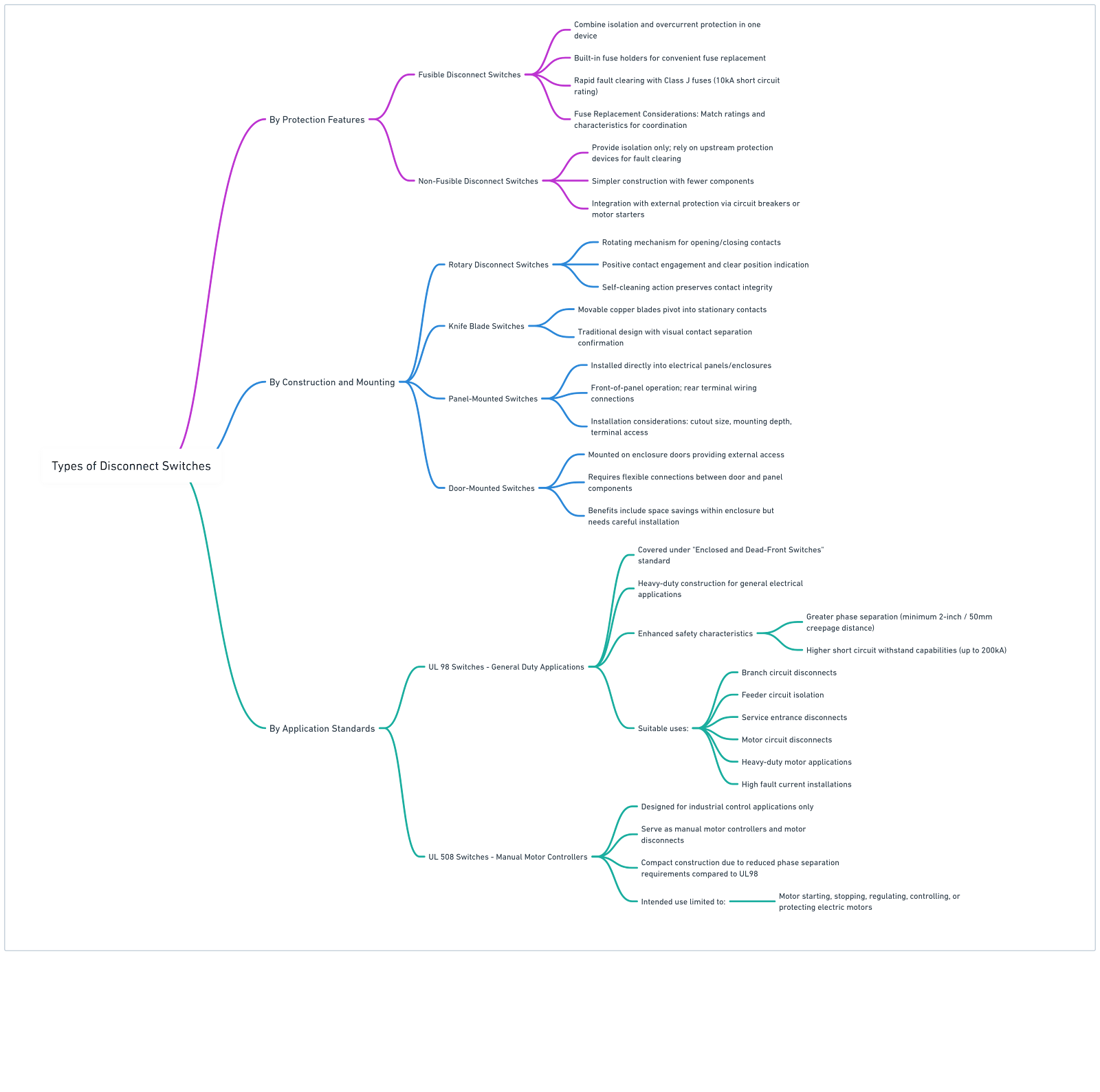

Types of Disconnect Switch

By Protection Features:

1. Fusible Disconnect Switches

Fusible disconnect switches combine power isolation and overcurrent protection in a single device, simplifying panel design and saving space. Fuse holders are built into the switch mechanism, allowing safe and convenient fuse replacement while maintaining the switch’s primary isolation function.

Built-in Overcurrent Protection:

Integrated fuses provide instant fault protection, clearing overloads and short circuits within milliseconds. This rapid response prevents equipment damage and significantly reduces arc flash energy. Compact, high-interrupting Class J fuses are commonly used for these applications.

Applications & Advantages:

Fusible disconnects are ideal where space is limited or where frequent switching and protection are required, such as in motor control centers, HVAC systems, pumps, and other motor-driven equipment. They simplify wiring, reduce panel components, and improve overall safety.

Fuse Replacement Considerations:

Replacement fuses must match the original ratings and characteristics to maintain proper protection coordination. Class J fuses typically offer a 10 kA short-circuit rating, sufficient for most industrial installations.

2. Non-Fusible Disconnect Switches

Non-fusible disconnect switches provide isolation only, relying on upstream devices such as circuit breakers, fuses, or motor starters for overcurrent protection. Their simplified design offers a cost-effective solution while still meeting essential safety isolation requirements.

Key Advantages:

• Simplicity & Reliability: Fewer components mean enhanced mechanical reliability and reduced maintenance needs.
• No Fuse Management: Eliminates the cost and effort of maintaining fuse inventory and replacements.
• Cost-Effective: Typically less expensive than fusible switches, making them ideal where multiple switches are needed or when existing protection is sufficient. (c3controls models start as low as $23.04, offering strong value.)

System Integration:

When properly coordinated with upstream protection, non-fusible disconnects ensure excellent system performance. They provide the required isolation while allowing flexibility in system design and protection coordination.

By Construction and Mounting

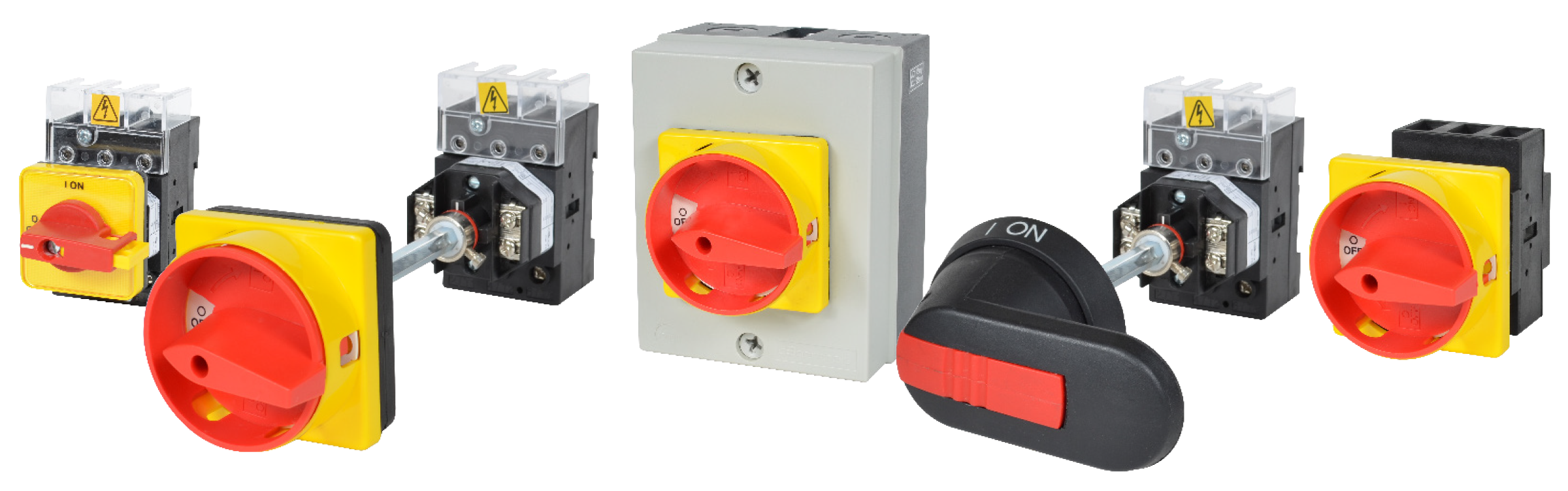

1. Rotary Disconnect Switches

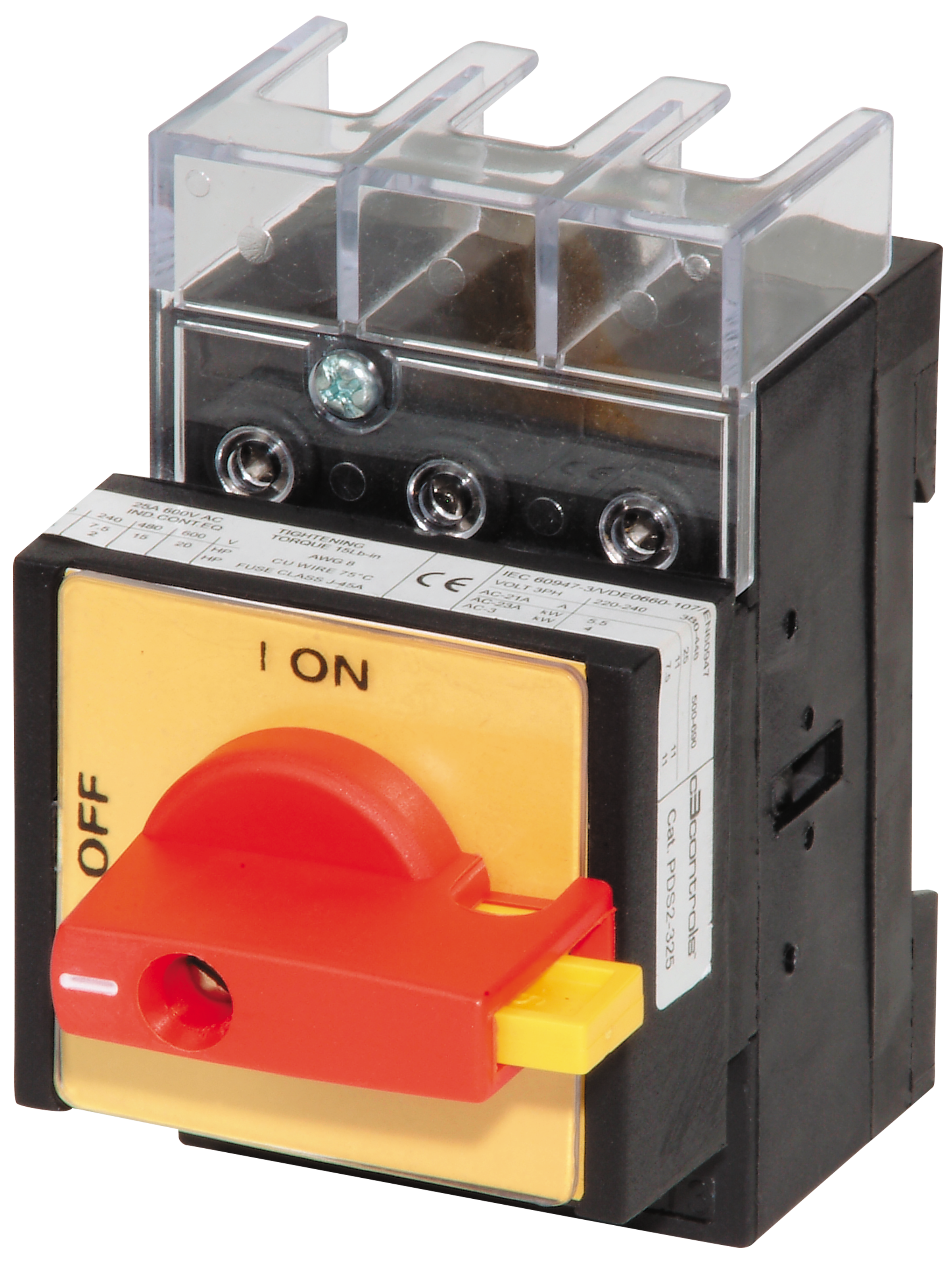

Rotary disconnect switches use a simple rotating handle to turn power on or off. The rotary motion not only makes the operation intuitive but also ensures a firm and reliable connection every time. As the handle turns, it increases contact pressure, keeping resistance low and preventing heat buildup. The rotary action even provides a gentle self-cleaning effect, helping the switch maintain solid performance over years of use.

2. Knife Blade Switches

Knife blade switches are the classic style of disconnect, with copper blades that swing into stationary contacts. Their design is simple and easy to understand, giving you a clear, visual confirmation that the circuit is either open or closed. Modern versions come with enclosed housings and improved materials, making them safer while still offering that unmistakable visual isolation many technicians prefer.

3. Panel-Mounted Switches

Panel-mounted disconnect switches are installed directly into an electrical panel or enclosure. They save space and are easy to access from the front of the panel, with wiring connections conveniently placed at the back. Manufacturers usually provide cutout templates and installation guides to make setup straightforward. Some models can even be DIN-rail mounted for extra flexibility and easier upgrades later.

4. Door-Mounted Switches

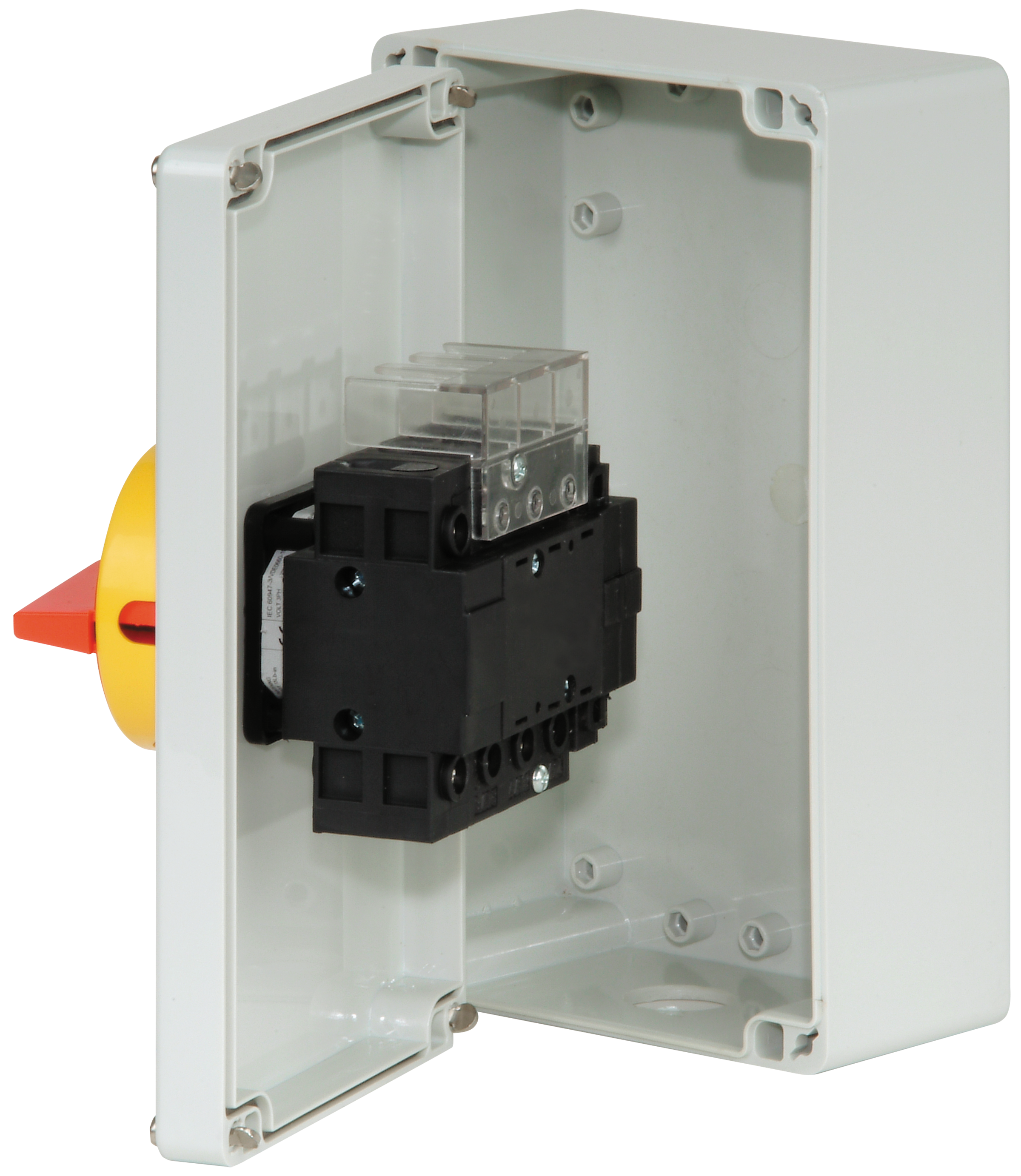

Door-mounted switches are installed right on the enclosure door, giving you the ability to switch power on or off without opening the cabinet. This saves space inside the panel and keeps operators safer. The only thing to watch for is that the flexible wiring that runs between the door and the panel needs to be installed carefully so it doesn’t wear out from repeated opening and closing.

5. DIN Rail Mounted Options

DIN-rail mounting is one of the easiest ways to install disconnect switches. They simply snap onto a standard 35 mm rail, no screws required. This modular setup makes it easy to add, remove, or rearrange components, which is great for system upgrades or quick maintenance. Accessories like end stops and labels help keep things organized.

By Application Standards

1. UL 98 Switches – General Duty Applications

UL 98 switches, defined under the Enclosed and Dead-Front Switches standard, are built with heavy-duty construction to handle a wide range of electrical applications. They are designed with enhanced safety features, including increased phase separation and the ability to withstand short-circuit currents up to 200 kA.

The UL 98 standard also specifies a minimum creepage distance of 2 inches (50 mm) between phases, ensuring maximum protection against electrical faults and improving installation safety. Thanks to their robust design, UL 98 switches can be used as:

• Service entrance disconnects
• Feeder circuit isolators
• Branch circuit protection devices
• Motor circuit disconnects
• Solutions for high fault current installations

2. UL 508 Switches – Manual Motor Controllers

UL 508 switches are specifically designed for industrial motor control applications. They function as manual motor controllers and disconnects, allowing operators to safely start, stop, regulate, or protect electric motors.

Their compact design, achieved through reduced phase separation, makes them ideal for space-constrained panels, but it also limits their use strictly to motor circuits.

⚠ Important Safety Note: UL 508 switches must not be used as main panel disconnects or general-purpose switches. Doing so violates NEC requirements and could lead to serious safety hazards and compliance issues.

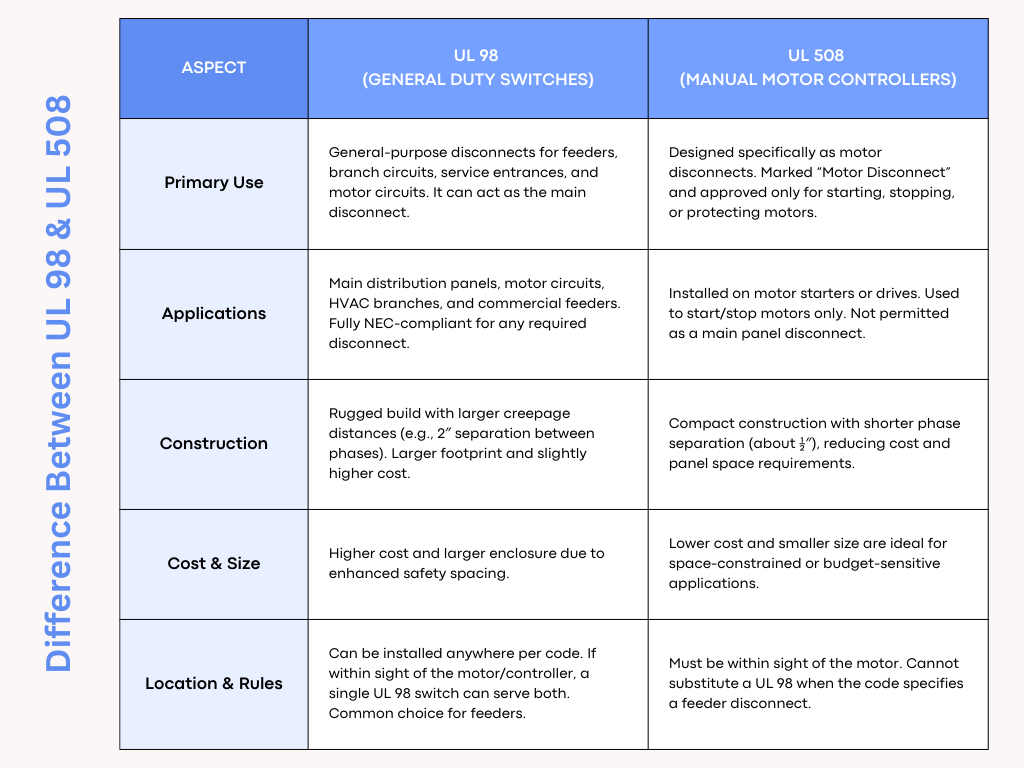

Note: Choosing the right standard: In practice, designers often pick a UL 98 switch for feeder/main disconnects and a UL 508 switch for motor starters. A simplified rule: If the disconnect controls only a motor and is located within sight of that motor/controller, a UL 508 switch is acceptable. Otherwise, use a UL 98 switch. Always verify the intended use against UL listings to avoid costly code violations.

----------------------------------------
